Single Sign-On Setup for Okta

Step 1: Create a new application on Okta

1. Log in to the Okta Admin Console.

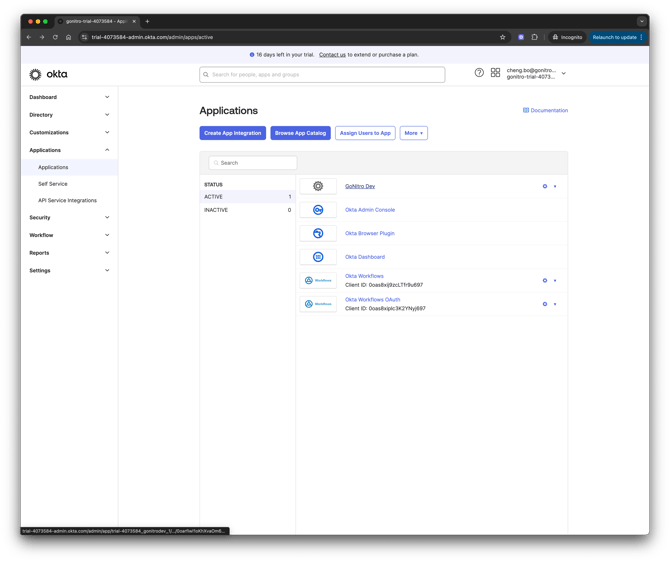

2. From the left navigation pane, select Applications.
3. Click Create App Integration.

4. In the Create a new app integration panel, select SAML 2.0 and click Next.

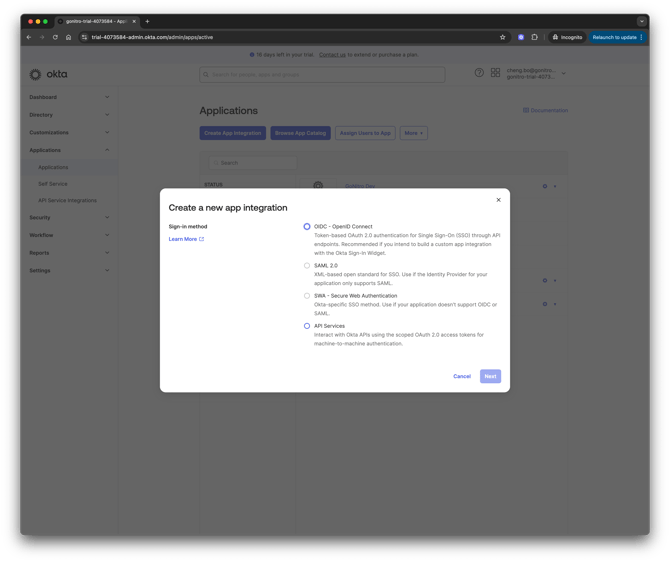

Nitro SSO Okta - Create New App Integration

5. On the General Settings step

Enter an Application Name (e.g. Nitro SSO)
Upload the Nitro Logo (Download Nitro Logo)

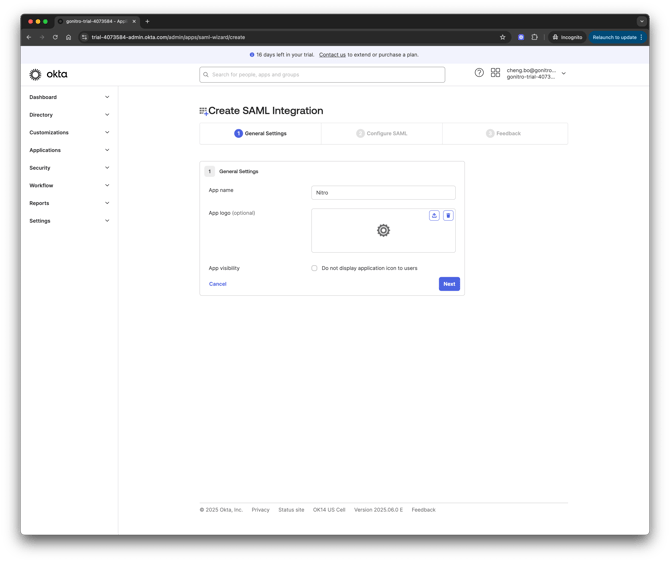

nitro-sso-okta-create-saml-integration

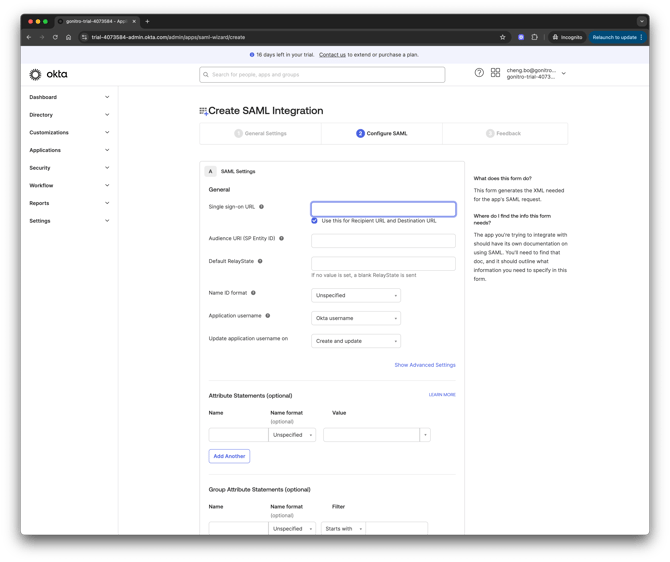

6. On the 'Configure SAML' step

Under SAML Settings, enter the following placeholder values:
- Single Sign-On URL: https://gonitro-prod.eu.auth0.com/login/callback
- SP Entity ID:placeholder

These will be updated later in Step 3.

7. Under Attribute Statements, map the following fields:

Name	Value
email	user.email
given_name	user.firstName
family_name	user.lastName

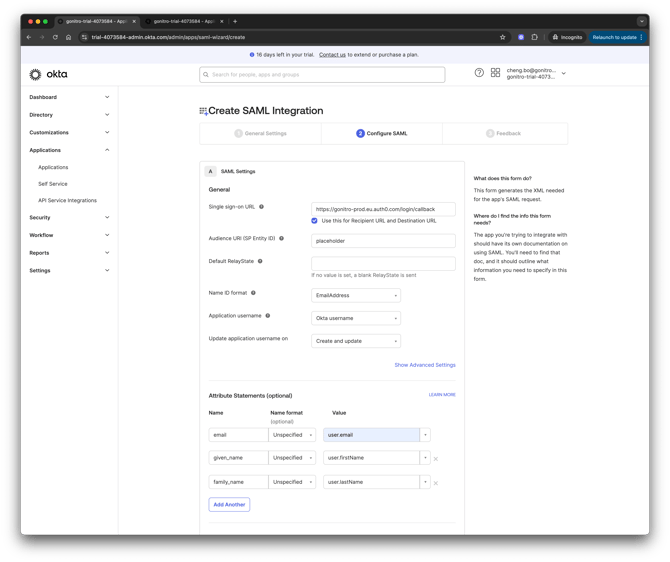

Nitro SSO Okta SAML Integration - Configure SAML- Attribute Statements

8. Click Next through the remaining steps to complete the app creation.

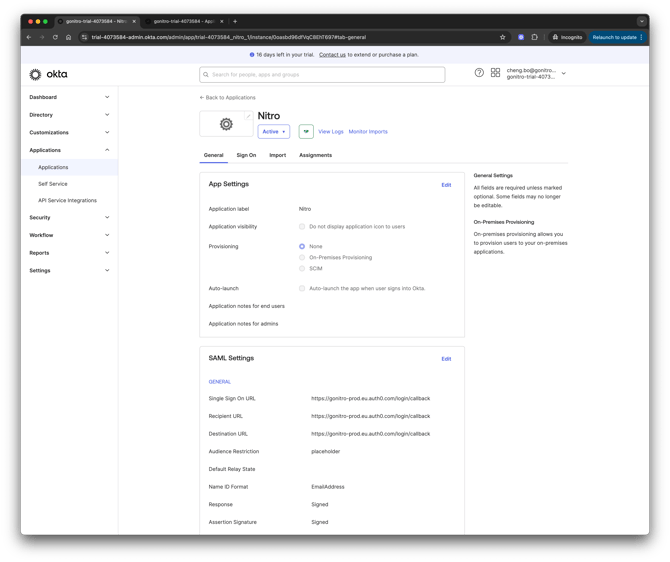

nitro-sso-okta-app-creation-complete

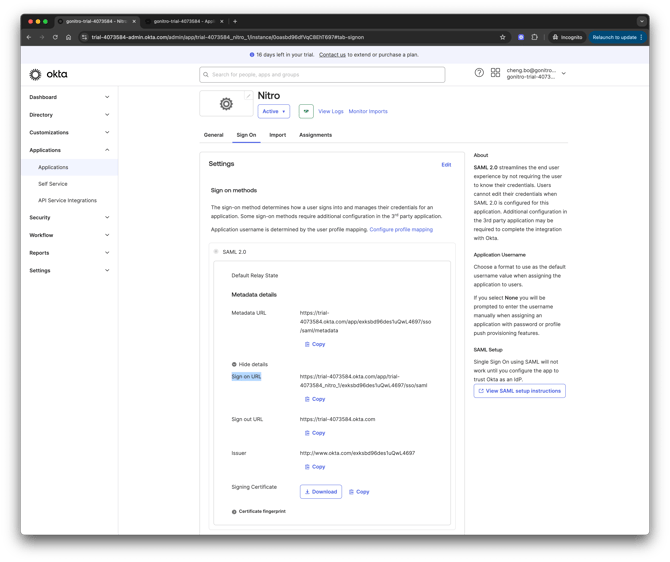

9. Go to the Sign On tab of the newly created application.

10. Under Metadata Details:

Download the Signing Certificate
Copy the Sign on URL

11. Rename the certificate file extension from .cert to .cer before uploading to Nitro Admin Portal.

Step 2: Set Up SAML SSO in the Nitro Admin Portal

1. Log in to the Nitro Admin Portal.

2. From the left navigation pane, go to Settings, then navigate to the Single Sign-On tab.

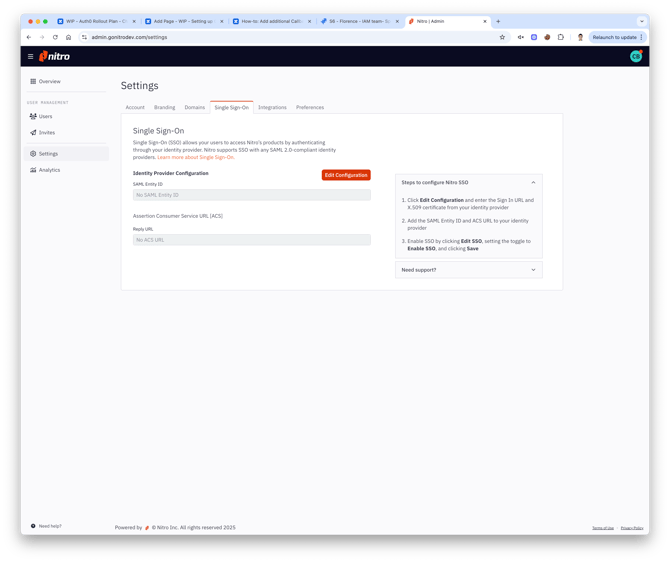

3. Click Edit Configuration

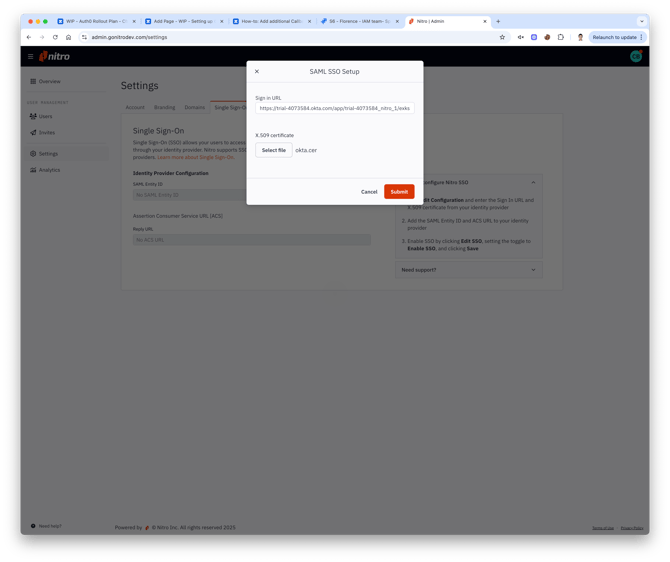

4. Paste the Sign on URL copied from Okta into the Sign-in URL field.

5. Upload the Signing Certificate downloaded from Okta into the X.509 Signing Certificate field. (Make sure the certificate file extension .cer before uploading)

Screenshot 2025-06-13 at 18.35.46

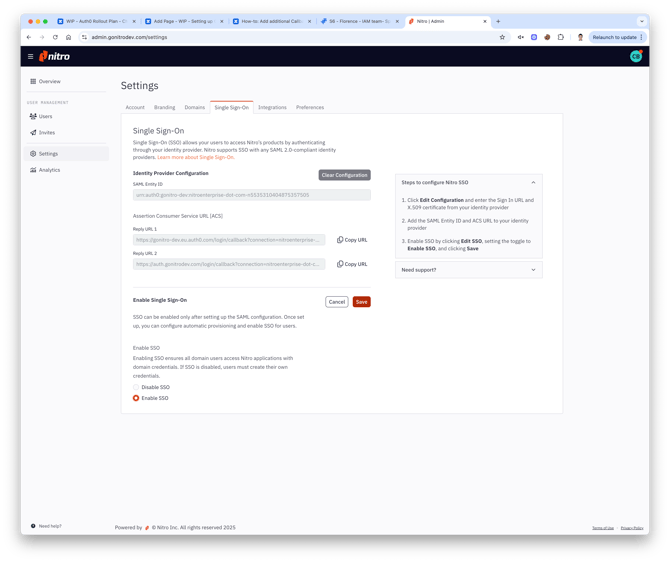

6. Click Submit and Enable SSO, then click Save. Image 3-1

7. Copy the following values for use in the next step:

Entity ID
Reply URL 1
Reply URL 2

Step 3: Update SAML Settings in Okta

1. Go back to Okta Admin Console.

2. Navigate to Applications > Nitro SSO App > Sign On tab, Click Edit on SAML Settings

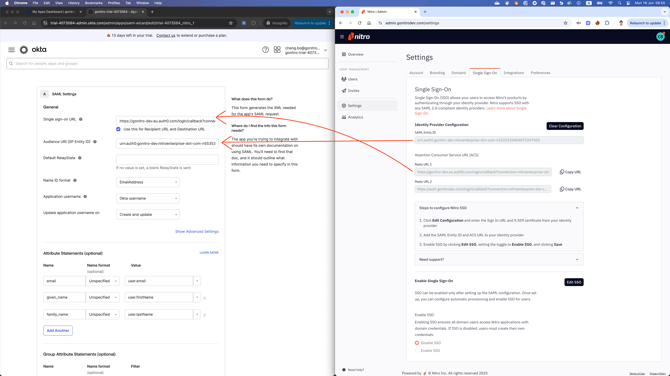

3. Update the placeholder values using the values copied from Nitro Admin:

Paste SAML Entity ID to Audience URI (SP Entity ID)
Paste Reply URL 1 to Single sign-on URL

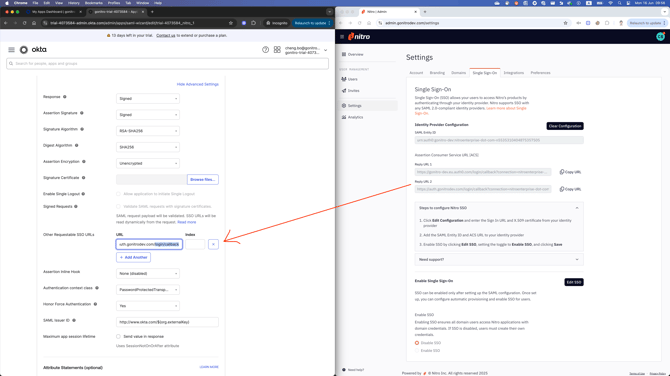

4. Paste Reply URL 2 to Other Requestable SSO URLs

Important: Okta does not support query parameters (e.g., ?connection=xxxx) in the Requestable SSO URL. Therefore, only add: https://auth.gonitro.com/login/callback

5. Save Changes

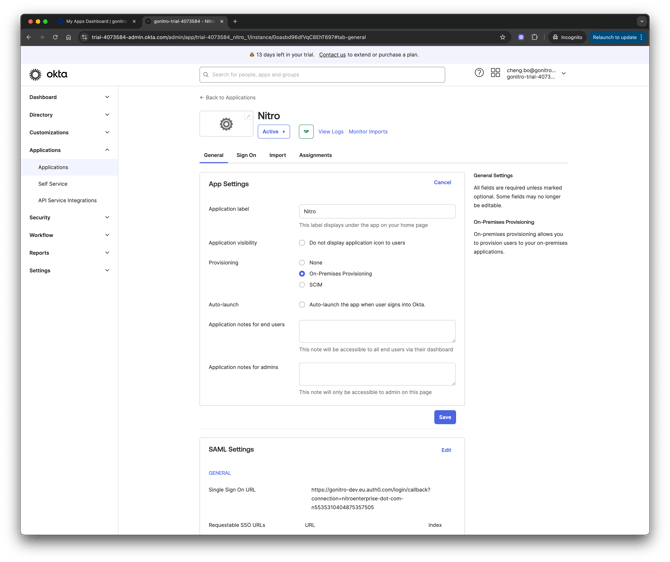

6. Click General Tab

7. Click Edit on App Settings

8. Set Provisioning to On-Premises provisioning

9. Click Save
